Production Pallet
Sharp Ply UPplus© production Pallets are always used, where reliable production of perfect concrete products is inalienable.
Sharp Ply UPplus© production Pallets was especially designed for the extreme demands of the concrete block industry.
The individual planks for example are kiln dried and moulded with a dovetail joint. The tight fitting and firm connection and lamination of the planks guarantees a flat and homogenuos surface. This in turn ensures the high quality of your concrete products, enhances longevity of the board and reduces cost. The C-Profile edge protection prevents mechanical damage at the edges of the board.
Sizes
- Thickness: 40mm- 60mm
- Length: 1080mm-1500mm
- Width: 490 mm-1350mm
Surface
- Production pallet sanded on both sides with 100% flat surfaces
- Knot holes/defects professional plugged with laminated natural wood dovels/repair strips
- Treated all sides with special impregnation oil
Wood Species
- Wood species: Pine, Spruce, Larch
Profile
- Planks connected with double dovetail joints
- Additional gluing with waterproof PU Glue(wood glue)
Edges

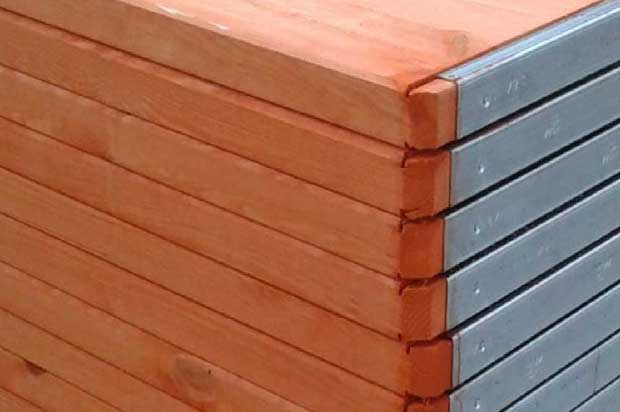

- C-profile edge protection made of galvanized steel secured with countersunk rivets and two force-fit impressions to avoid mechanical damages
- Longitudinal edges slightll beveled
Advantages of Ply for patterns & Dies
Double locking: Thanks to double dovetail joints and gluing with waterproof PU Glue(wood glue)
Especially developed to fulfil the extreme requirements of the concrete industry
Specific adaption of the moisture content of each individual order according to the customer's requirements
Very good transmission of vibrations and steady vibration behavior(continuous dovetail joints)
Especially well-suited for concrete block machines with rinsing equipment because dripping of water through the planks connection is impossible
Only selected and high quality softwood from top growing regions is used
Permanent quality assurance executed by our skilled workers at all stages of production
"used" boards are easily recyclable(Possible resaleable)
Container loading according to Phytosanitary Standards ISPM 15/2005
International service by our export team
