H-Beams

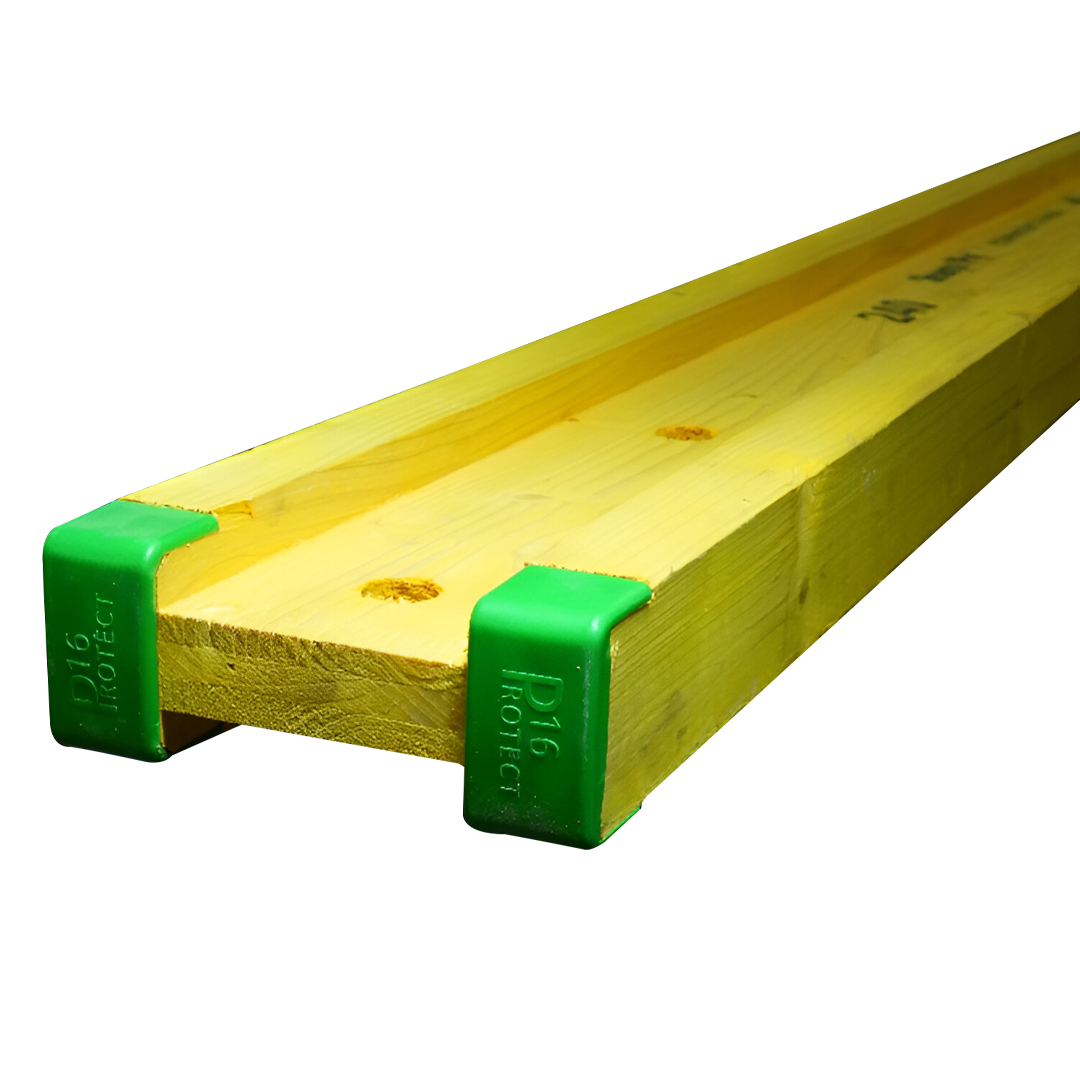

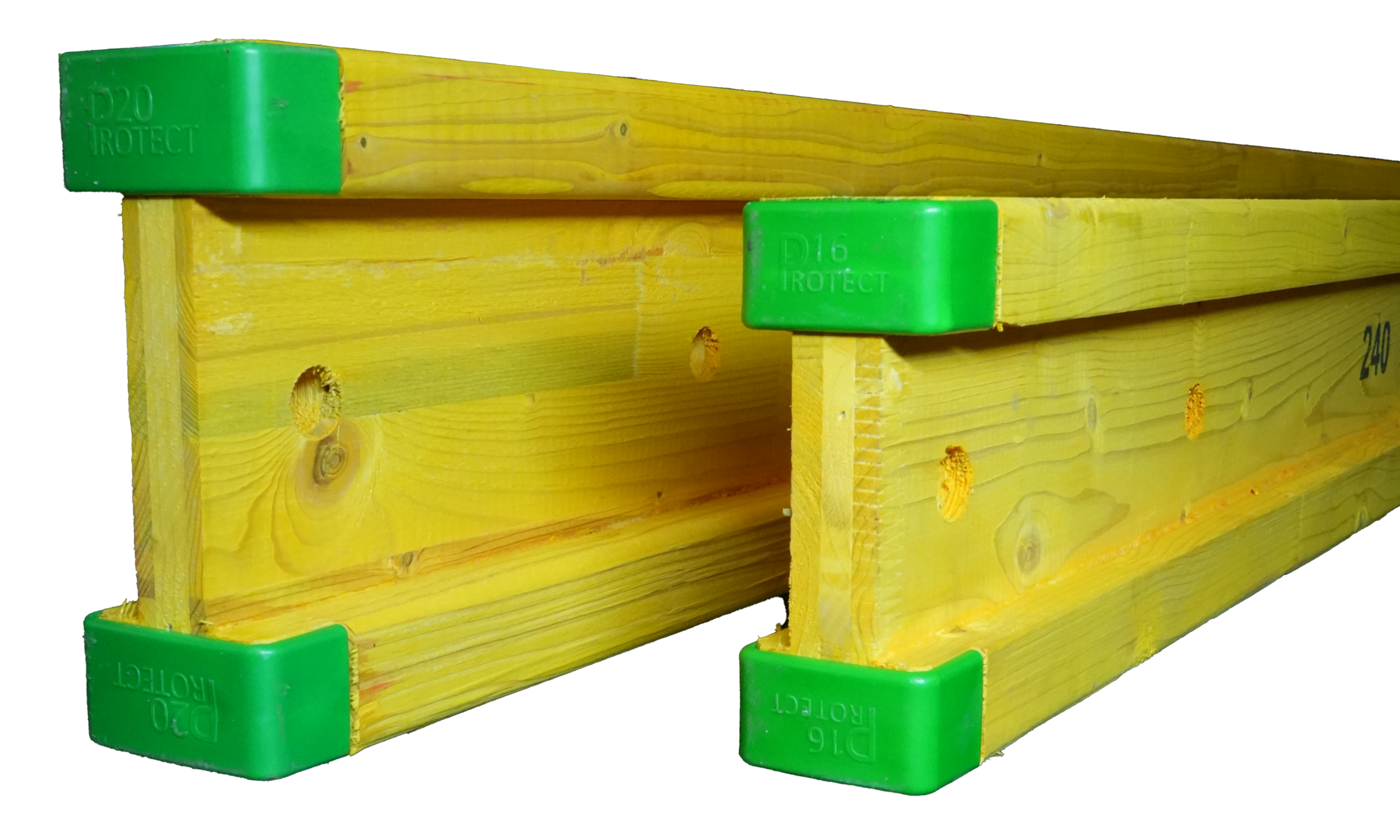

Understanding the need of time and taking another step forward, Sharp Ply in association with Mywood, Germany are now equipped with imported P20 and C20 Wooden Beams/Timber Beams. The association brings you imported EN13377 certified beams readily available in various lengths. A step further in this product are the plastic end caps for resistance toward impact faced by the product during de-shuttering.
Fine-ported solid and firm timber

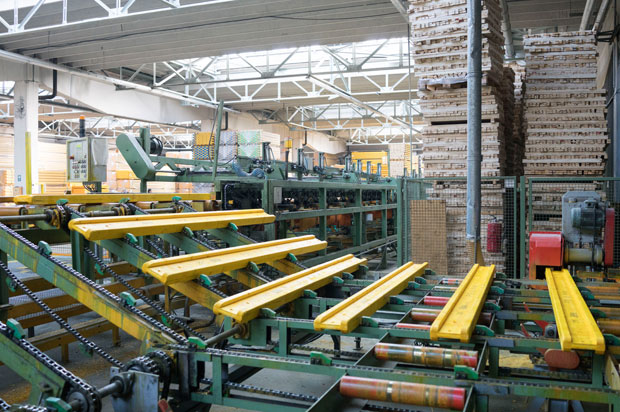

All material is being scanned by X-ray and assorted automatically for defects

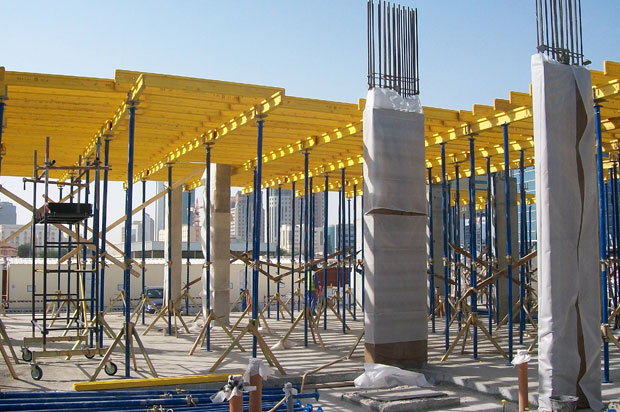

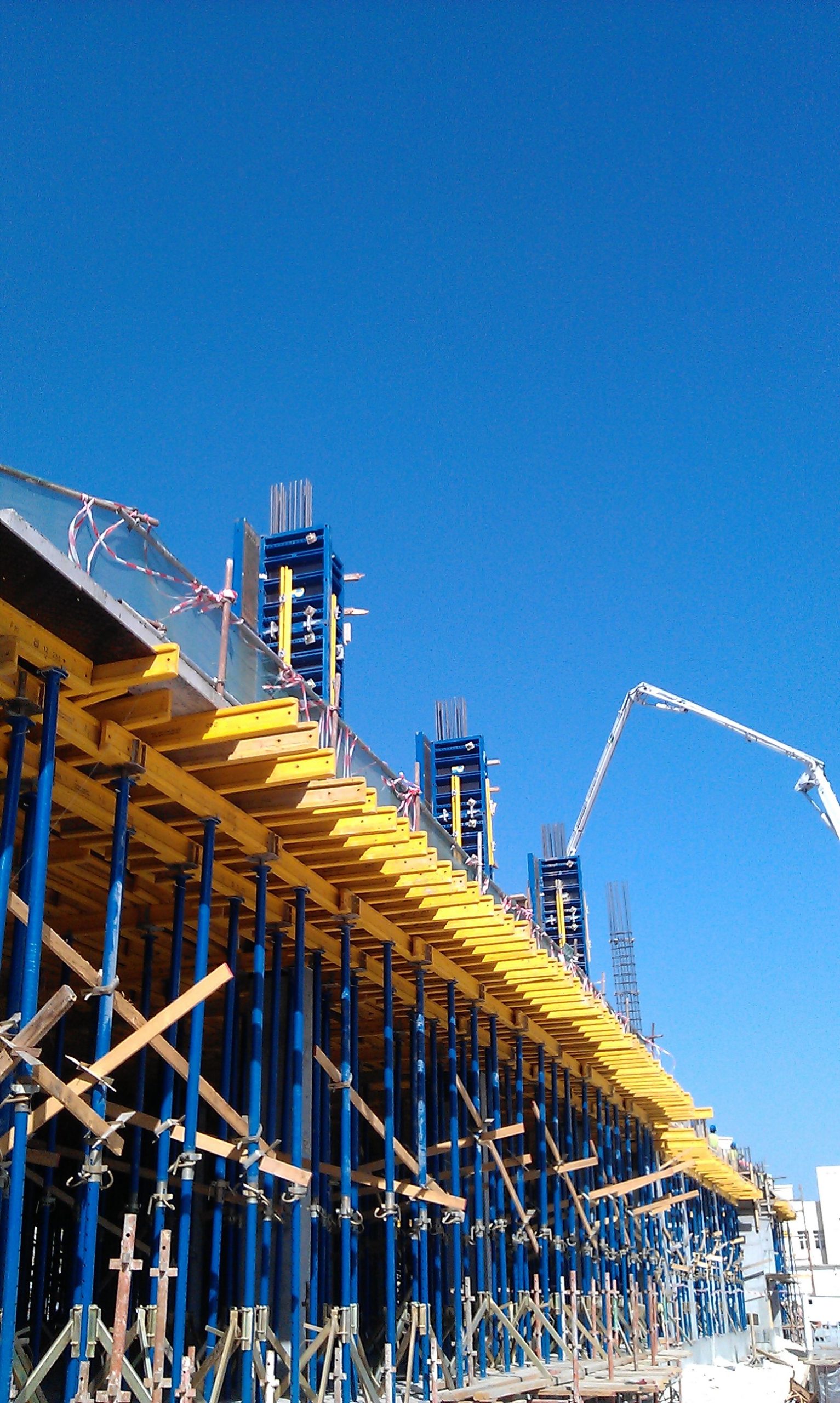

Suits for difficult working conditions at building sites
Safe & cost-effective
For more than 12 years H16 and H20 formwork beams are produced at Polomka, Slovakia.
Advantages
01
High loading bearing capacity at low weight
02
Firm gluing(according to gluing certificate C)
03
Highest safety level due to automatic sorting of raw material
Product Specifications
| Properties | Ref. standard | Value |
|---|---|---|
| Density (gm/cc) | IS: 1708(Part-2) 1986 | 0.80 |
| Moisture content and Volatile content | IS: 1708(Part-1) 1986 | 9% |
| Water absorption in 24 hrs. | IS: 14616: 1999 | 1.56% |
| Modulus of Rupture (N/mm2) | IS: 1708 (Part-6) 1986 | 98 |
| Modulus of Elasticity (N/mm2) | IS: 1708 (Part-6) 1986 | 9000 |
| Parallel to laminate | IS: 1708 (Part-8) 1986 | 45 |
| Perpendicular to laminate | IS: 1708 (Part-9) 1986 | 160 |
| Horizontal Shear (N/mm2) Parallel to laminatePerpendicular to laminate | IS: 1708 (Part-1) 1986 IS: 1708 (Part-11) 1986 |
8 12 |
| Tensile strength Parallel to laminate (N/ mm2) | IS: 1708 (Part-12) 1986 | 60 |
| Screw Holding Power Edge (N) MinFace (N] Min | IS: 1708 (Part-15) 1986 | 2500 3000 |
| Sizes | Value |
|---|---|
| Length up to 10ft. | 35 mm, 60 mm |
| Width up to 21t. | 155 kg |
