Description
CWP system is a reliable combination of Variant’s folding working platforms and framed or timer-beam formwork systems for use as a crane-jumped formwork on sites where the formwork has to be repositioned upwards in several casting sections, and there is no need for retractable formwork. CWP can also be used as a roof and edge protection system.
Load-Bearing Capacity
- Loads on the suspension point: Horizontal load – 36 kN, Vertical load – 26 kN.
- Live load per unit area 150 kg/m2 on folding and working platforms.
- Formwork height of up to 3.75 m
Cost-Effective
- Minimal usage of cane, as the folding platform and formwork are moved up in one single lift.
- Wide choice of formwork, as the platform can be combined with either framed or timber-beam formwork.
Easy to Use
- Fewer numbers of different parts is used.
- Time and cost-effective owing to use of preassembled elements.
- The formwork can be plumbed and aligned very quickly and accurately in all directions, with a simple adjustment mechanism.
Safe Use
- Safe working conditions provided by fully railed-in 1.80 m wide working platform.
- Dependable suspension points, with certified suspension cone and lift-out guard for the brackets.
Elements
Bearing profiles
Cantilever positioning cone
Connection shoe
Fixing plate
Folding bracket
Pigtail anchor

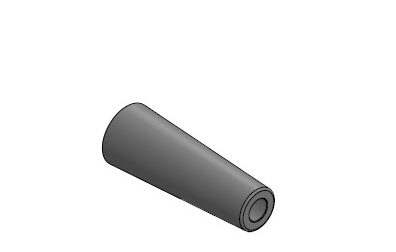

Sealing sleeve
Star screw

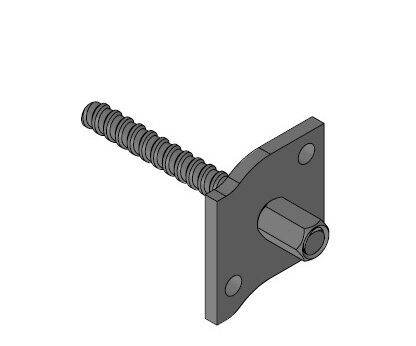

Stop anchor
Superplate

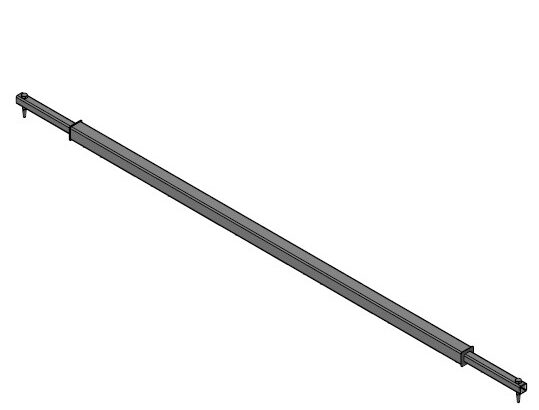

Support girder

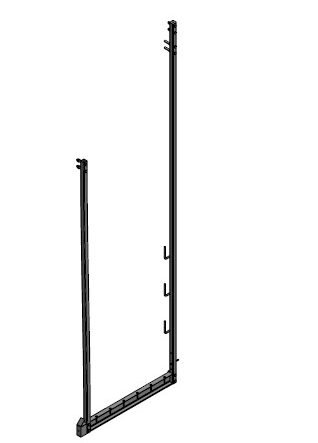

Suspended platform

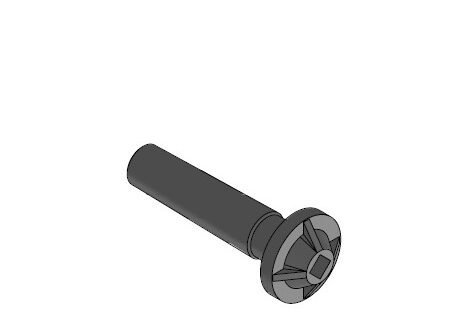

Suspension cone
Tie Rod

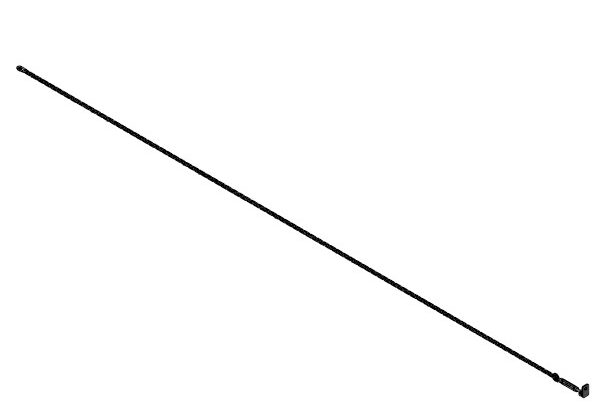

Wind Bracing
